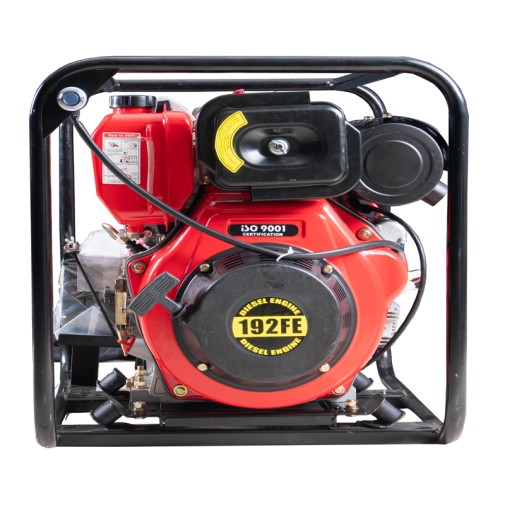

Water Pump EP80IXLS

Water Pump EP80D

Water Pump EP100DE

Stock Code: 881204035
Product Code: EP80IXLS

RM0.00

Engine :

Water Pump - Suction diameter :

Water Pump - Cont. head :

Water Pump - Suction head :

Air Cooled Diesel Engine - Max. Power :

Air Cooled Diesel Engine - Displacement :

Pump Set :

Water Pump EP40XL-2

Water Pump EP100DE

Water Pump EP80D

Water Pump EP50IXL

Water Pump EP50D

Qty

Add to Wish List

Compare this Product

Description

Water Pump - Suction diameter : 3 "

Water Pump - Cont. head : 92 m

Water Pump - Suction head : 6 m

Engine - Model : 192F

Air Cooled Diesel Engine - Max. Power : 9.2kW / 3600rpm

Air Cooled Diesel Engine - Displacement : 0.498 L

Pump Set : Net Weight : 82kg

Pump Set : Gross Weight : 85kg

Pump Set : Dimension : 665 x 545 x 615 mm

Technical Parameter:	Model	EP40XL-2	EP50IXL	EP80IXLS
WATER PUMP	Suction Diameter	1.5 inch	2 inch	3 inch
	Cont. Capacity	18 m³/ h	35 m³/ h	40 m³/ h
	Cont. Head	60 m	92 m
	Suction Head	8 m	6 m
AIR COOLED DIESEL ENGINE	Model	178F	188F	192FA
	Max. Power	4.4 kW	8.2 kW	9.2 kW
	Speed	3600 rpm
	Displacement	0.296 L	0.456 L	0.498 L
PUMP SET	Bore x Stroke	78 x 62 mm	88 x 75 mm	92 x 75 mm
	Net Weight	50kg	72kg	82kg
	Gross Weight	53kg	77kg	85kg
	Dimension	580 x 460 x 565 mm	655 x 540 x 615 mm	665 x 545 x 615 mm
	Stroke Code	881204015	881204034	881204035
