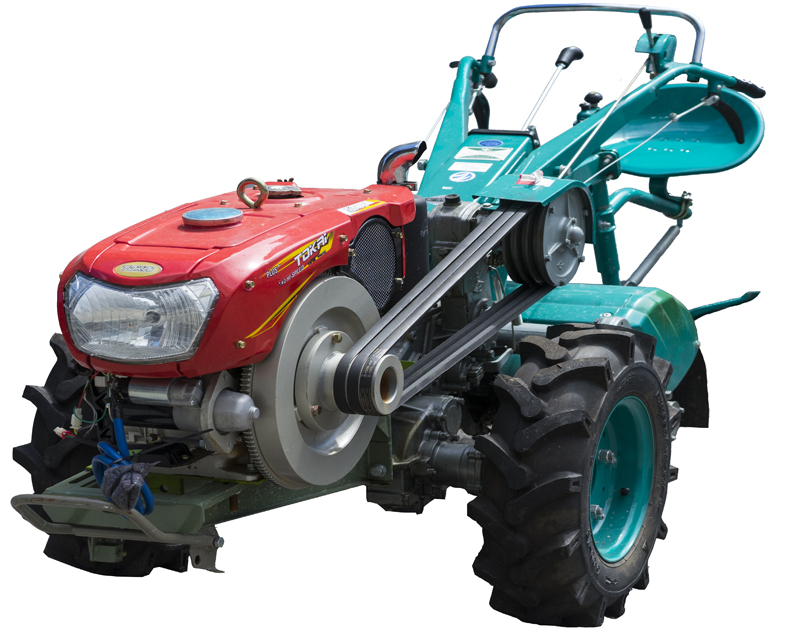

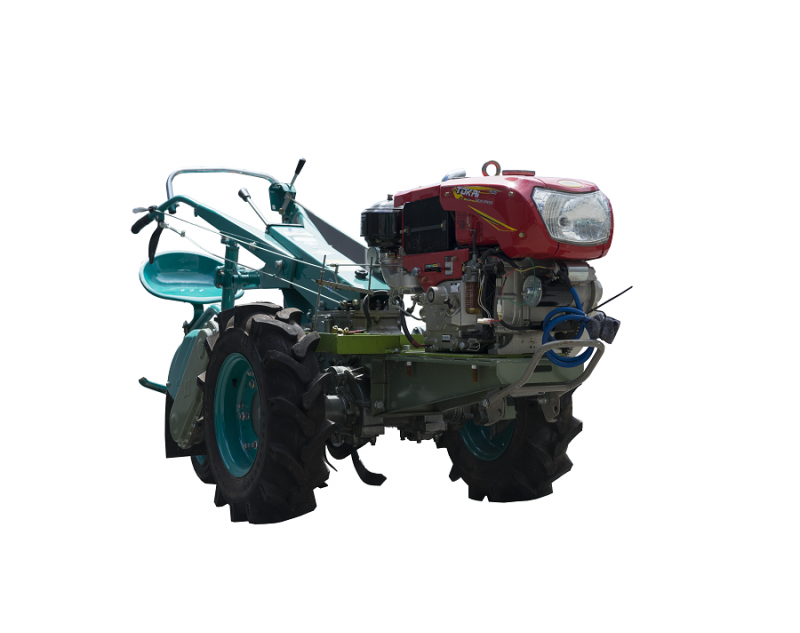

Power Tiller TK12

Stock Code: 881403007
Product Code: TK-12

RM0.00

Engine :

Dimension :

Max. Output:

Minimum Ground Clearance (mm) :

Wheel Treat(mm) :

Net Weight:

Speed (km / hour) :

Speed of Rotary Tiller Blade shaft (rpm) :

Productivity :

Fuel Consumption :

Leaf Blower TB70

Leaf Collector TB26

Qty

Add to Wish List

Compare this Product

Description

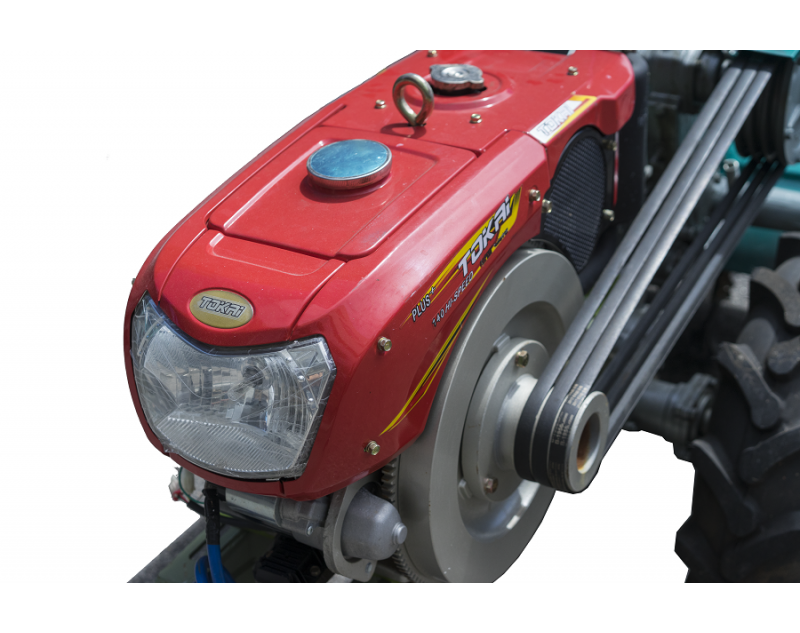

Model of Engine : TK125N

Max. output : 12HP

Overall Dimension (mm): 2950 x 980 x 1240

Minimum Ground Clearance (mm) : 210

Wheel Treat(mm) : Rubber wheel 570 ~ 810, Iron wheel 850 ~ 1090

Weight (kg) : 540 ( with engine)

Speed (km / hour) : FORWARD : 1.41, 2.51, 4.21, 5.22, 9.27, 15.56 ; REVERSE : 1.11, 4.12

Speed of Rotary Tiller Blade shaft (rpm) : 1st Speed : Low 200 High 251 ; 2nd Speed : Low 233 High 291

Productivity : Ploughing - Depth : 17~23cm, Width : 33cm ; Tilling - Depth : 12~17cm, Width : 60cm

Fuel Consumption : ≤ 258.4g/kWh

Model	TK-12	TK-15
Model of Engine	TK125N	TK140NE
Engine Rated Power	12HP	15HP
Overall Dimensions (mm)	2950 x 980 x 1240
Minimum Ground Clearance (mm)	210
Wheel Tread (mm)	Rubber wheel 570-810, Iron wheel 850-1090
Weight (kg)	540 (with engine)	558 (with engine)
Speed (km/hour)	Forward : 1.41, 2.51, 4.21, 5.22, 9.27, 15.56, Reverse : 1.11, 4.12
Speed of Rotary Tiller Blade shaft (rpm)	1st Speed : low 200 high 251 2nd Speed : low 233 high 291	1st Speed : low 221 high 276 2nd Speed : low 256 high 320
Productivity	Ploughing : Depth : 17-23 cm, Width : 33 cm Tilling : Depth : 12-17 cm, Tilling : Depth : 12-17cm, Width : 60 cm Width : 80 cm
Fuel Consumption	≤ 258.4 g/hour
Oil Consumption	≤ 1.7
Implement	Rotary Cultivator (18 blades/600mm)	Rotary Cultivator (24 blades/800mm)
